8M型号同步带轮

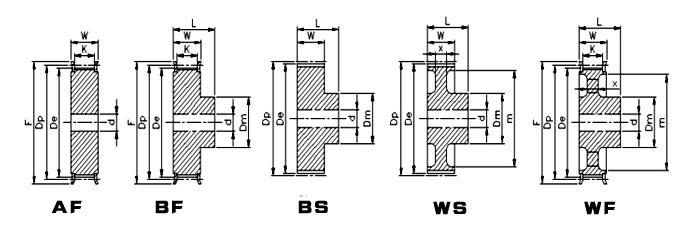

8M型号同步带轮尺寸表(节距=8.00mm)
|
|
||||||||||||||
|
规格 |
齿数 |
形状 |
节径 |
外径 |
W |
L |
1K |
X |
轮毂直径 |
内孔 |
透孔外径 |
档边 外径 |
档边 内径 |
档边型号 |
|
|
22 |
A/B |
56.02 |
54.65 |
31 |
53 |
26 |
- |
40 |
16 |
- |
64 |
48 |
F-156448 |
|
|
24 |
A/B |
61.12 |
59.74 |
31 |
53 |
26 |
- |
44 |
16 |
- |
69 |
50 |
F-156950 |
|
|
25 |
A/B |
63.66 |
62.29 |
31 |
53 |
26 |
- |
46 |
16 |
- |
69 |
50 |
F-156950 |
|
|
26 |
A/B |
66.21 |
64.84 |
31 |
53 |
26 |
- |
48 |
16 |
- |
74 |
53 |
F-157453 |
|
|
28 |
A/B |
71.30 |
69.93 |
31 |
53 |
26 |
- |
52 |
16 |
- |
78 |
58 |
F-157858 |
|
|
30 |
A/B |
76.39 |
75.02 |
31 |
53 |
26 |
- |
56 |
20 |
- |
83 |
63 |
F-158363 |
|
|
32 |
A/B |
81.49 |
80.12 |
31 |
53 |
26 |
- |
60 |
20 |
- |
90 |
69 |
F-159069 |
|
|
34 |
A/B |
86.58 |
85.21 |
31 |
53 |
26 |
- |
64 |
20 |
- |
93 |
75 |
F-159375 |
|
|
36 |
A/B |
91.67 |
90.30 |
31 |
53 |
26 |
- |
68 |
20 |
- |
99 |
78 |
F-159978 |
|
|
38 |
A/B |
96.77 |
95.39 |
31 |
53 |
26 |
- |
72 |
20 |
- |
105 |
84 |
F-1510584 |
|
|
40 |
A/B |
101.86 |
100.49 |
31 |
53 |
26 |
- |
74 |
20 |
- |
112 |
90 |
F-1511290 |
|
|
42 |
A/B |
106.95 |
105.58 |
31 |
53 |
26 |
- |
76 |
20 |
- |
115 |
90 |
F-1511590 |
|
|
44 |
A/B |
112.05 |
110.67 |
31 |
53 |
26 |
- |
78 |
20 |
- |
121 |
99 |
F-1512199 |
|
|
46 |
A/B |
117.14 |
115.77 |
31 |
53 |
26 |
- |
80 |
20 |
- |
126 |
100 |
F-15126100 |
|
|
48 |
A/B |
122.23 |
120.86 |
31 |
53 |
26 |
- |
80 |
20 |
- |
131 |
111 |
F-15131111 |
|
|
50 |
B/W |
127.32 |
125.95 |
31 |
53 |
26 |
9 |
82 |
20 |
94 |
136 |
114 |
F-15136114 |
|
|
52 |
B/W |
132.42 |
11.40 |
31 |
53 |
26 |
9 |
84 |
20 |
99 |
141 |
118 |
F-15141118 |
|
|
56 |
B/W |
142.60 |
141.23 |
31 |
53 |
26 |
9 |
86 |
20 |
110 |
152 |
134 |
F-15152134 |
|
|
58 |
B/W |
147.70 |
146.32 |
31 |
53 |
26 |
9 |
88 |
30 |
115 |
156 |
135 |
F-15156135 |
|
|
60 |
B/W |
152.79 |
151.42 |
32 |
53 |
26 |
9 |
88 |
30 |
120 |
160 |
140 |
F-20160140 |
|
|
62 |
B/W |
157.88 |
156.51 |
32 |
53 |
26 |
9 |
90 |
30 |
125 |
166 |
145 |
F-20166145 |
|
|
64 |
B/W |
162.97 |
161.60 |
32 |
53 |
26 |
9 |
92 |
30 |
130 |
170 |
150 |
F-20170150 |
|
|
67 |
B/W |
170.61 |
169.24 |
32 |
53 |
26 |
9 |
94 |
30 |
138 |
179 |
158 |
F-20179158 |
|
|
72 |
B/W |
183.35 |
181.97 |
32 |
53 |
26 |
9 |
94 |
30 |
151 |
192 |
171 |
F-20192171 |
|
|
80 |
B/W |
203.72 |
202.35 |
32 |
53 |
26 |
9 |
98 |
30 |
171 |
212 |
191 |
F-20212191 |
|
|
84 |
B/W |
213.90 |
212.53 |
32 |
53 |
26 |
9 |
98 |
30 |
181 |
223 |
201 |
F-20223201 |
|
|
90 |
B/W |
229.18 |
227.81 |
32 |
53 |
26 |
9 |
100 |
30 |
196 |
238 |
216 |
F-20238216 |
|
|
96 |
B/W |
244.46 |
243.09 |
32 |
53 |
26 |
9 |
102 |
30 |
211 |
253 |
231 |
F-20253231 |
|
|
112 |
B/W |
285.21 |
283.83 |
32 |
53 |
26 |
9 |
108 |
40 |
252 |
294 |
272 |
F-20294272 |
